PRODUCTS
ADJUSTABLE HINGE KITS

Adjustable Hinge Kits

The Airlines for America ATA103 specification update requires Lay Flat hydrant pit covers by the end of 2027. The 4 Mile Fueling team responded with an adjustable, robust, and cost­effective hinge designed for the realities of the ramp.

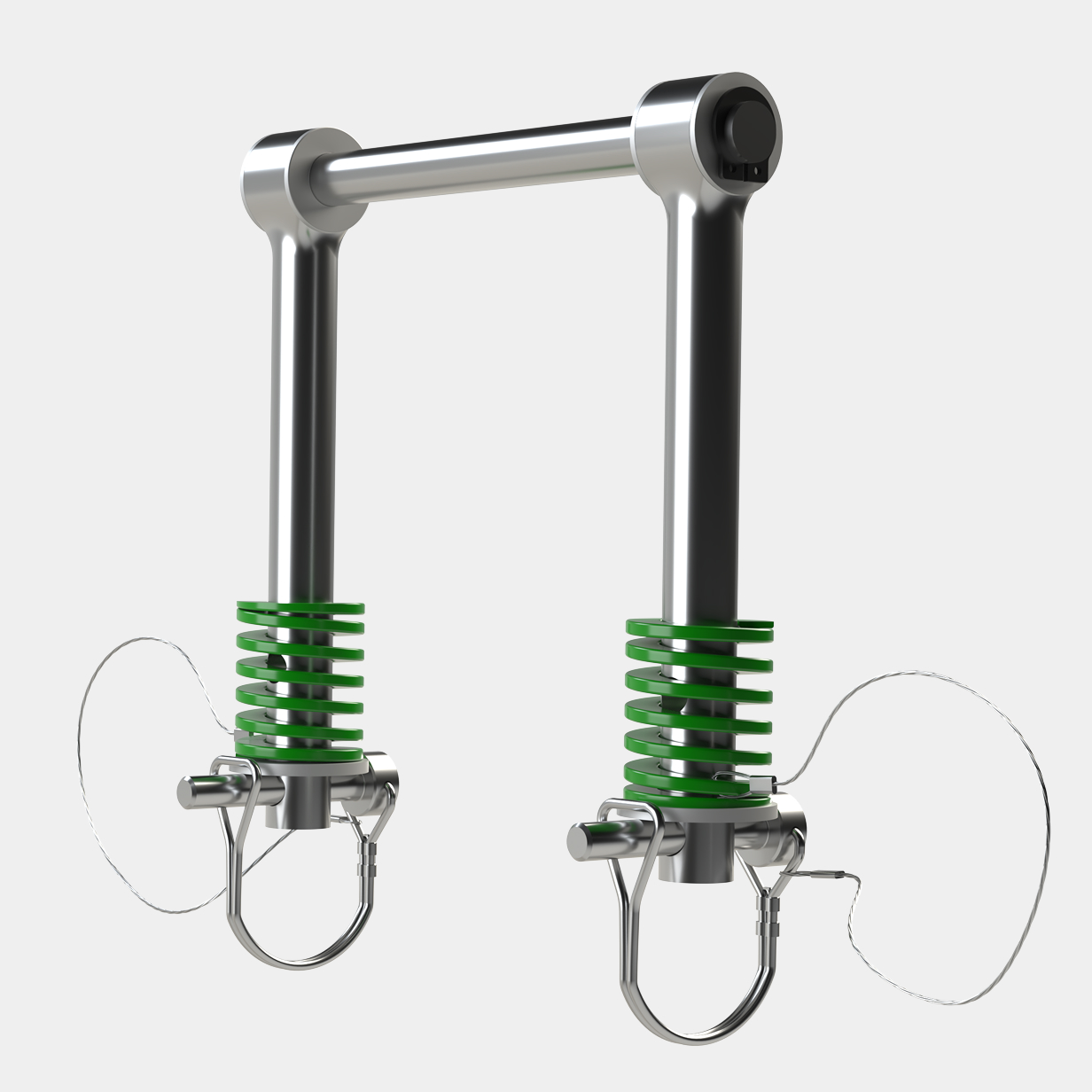

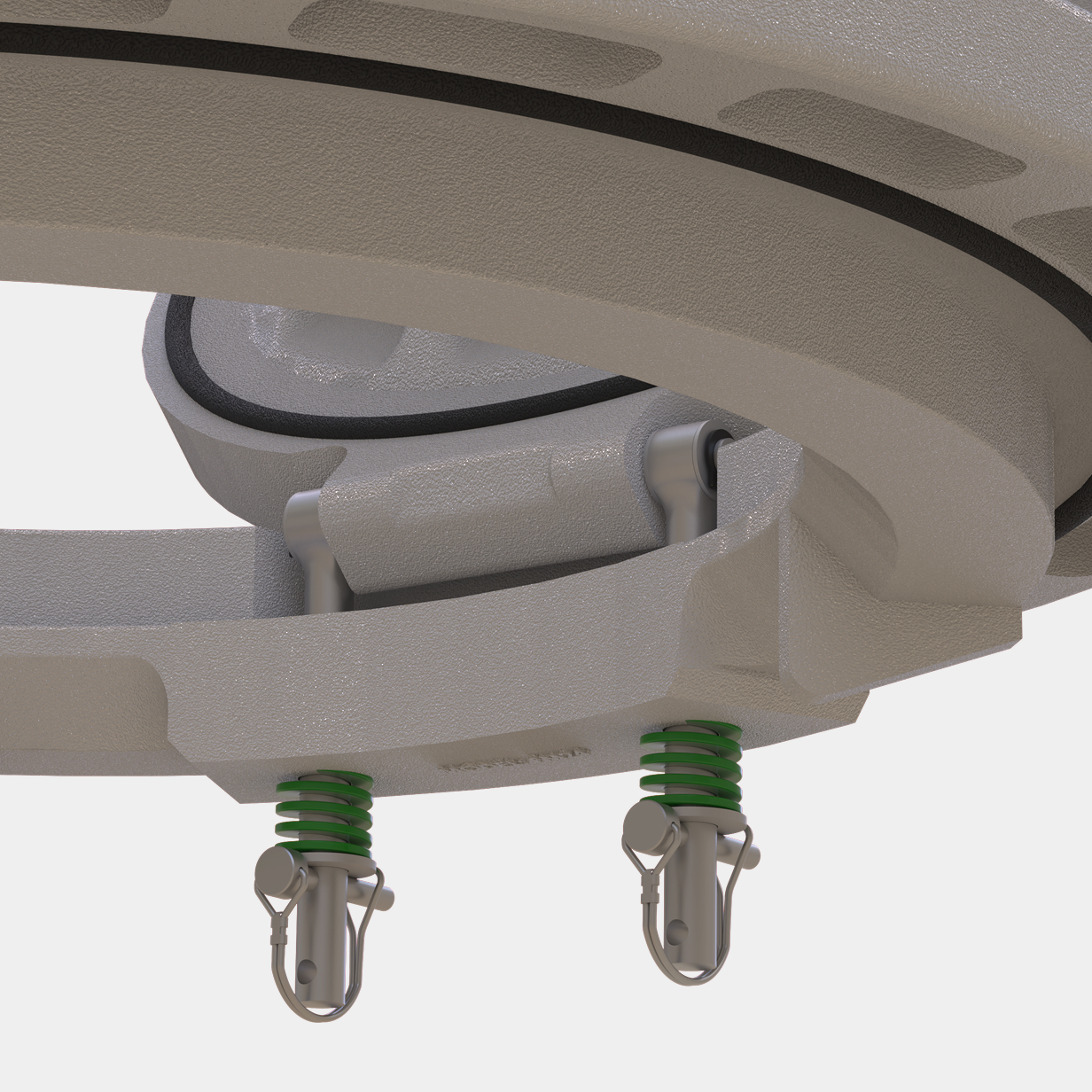

The design is simple by intention. Operators can switch between Lay Flat and Non-Lay Flat configurations in the field without any special tools or equipment. Moving the pins to the lower eye bolt holes sets the cover for Lay Flat operation, while the upper holes set it for Non-Lay Flat. The same hinge works across Hydrant, Low Point, and High Point pits, so one solution covers your entire fueling system.

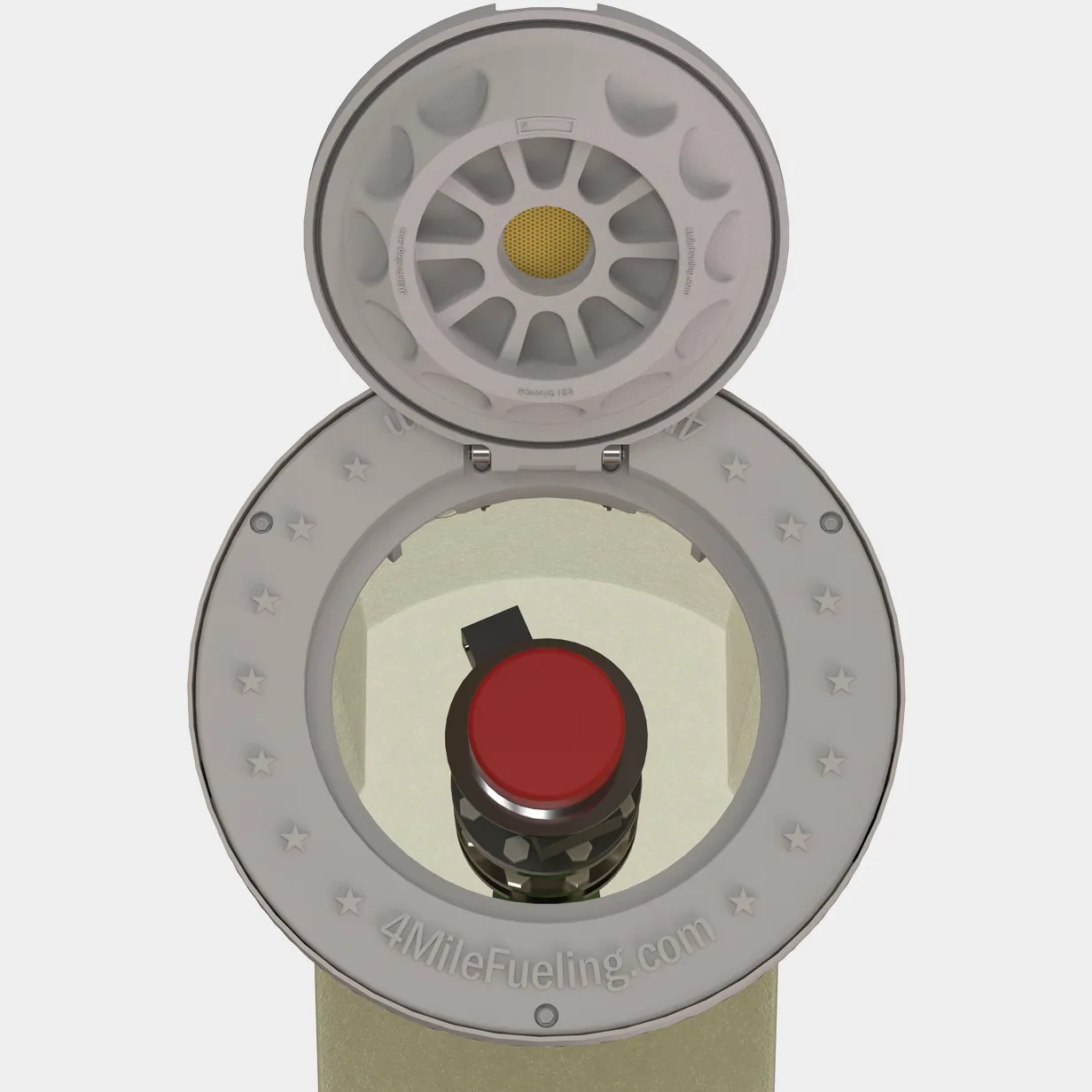

The FM-24 Aircraft Load Rated, One-Hand-Lift Cover Assembly is sized to be retrofittable out of the box with most existing covers in the field. In many cases, an existing fuel hydrant pit cover only needs the HK-24 Hinge Kit, reusing the current cover and frame and delivering substantial savings compared to a new cover assembly. Please reach out to sales@4milefueling.com for a free selection guide to see if your existing covers are compatible.

REQUEST A QUOTE
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Key Features
  • Meets the ATA103 Lay Flat requirement ahead of the 2027 deadline
  • Tool-free adjustment between Lay Flat and Non-Lay Flat configurations
  • Works on Hydrant, Low Point, and High Point pits
  • FM-24 cover is aircraft load rated with one-hand lift
  • HK-24 Hinge Kit retrofits most existing covers and frames
  • Buy American Act compliant
Domestic and International Shipping

Standard shipping terms are EXW (Ex Works). Shipping is not included.

other Products

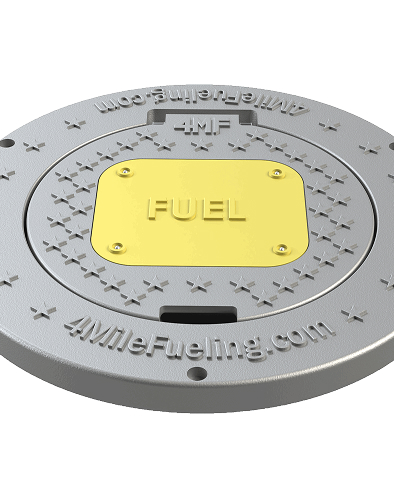

FUEL PIT COVER
VIEW PRODUCT
TOP FLANGE
VIEW PRODUCT
FUEL PIT ASSEMBILIES
VIEW PRODUCT

Customer testimonials

“The entire team has been really great. Wyatt, Rob, and Mary have been perfect to work with. I would recommend 4MF because of their customer service.”
Regional Director,
"The biggest benefit has been how quickly the order was fulfilled. Customer service has been good and the pricing is within means. I'd recommend 4MF to another airport or fueling operator."
General Manager,
"It's been great. We got a few lids and they fit right in place, no problem at all. The installation was simple and easy. I was expecting a long lead time, but it didn't take hardly any time to get in, so I was very pleased with that. I'd rate the overall quality a 10 out of 10."
General Manager,
"The installation was simple, just three bolts and a couple of safety locks. Communication was very good throughout, and we're very pleased with it."
Operations Manager,

MADE IN THE U.S.A.

FUTURE-PROOF BY DESIGN

Built with durable materials and precision engineering, 4MF products are designed to adapt as fueling standards evolve. Retrofit-ready components and field-adjustable configurations help teams extend the life of existing infrastructure while keeping critical fueling operations moving.
